Product Specs

These products are 3D printed using high quality PETG filament.  Urethane TPU filament is used for the rubber-like inserts

PowerShell Dimensions (mm)

 Traditional Design

(Avail upon request)

PowerShell Barrel

(Coming Soon)

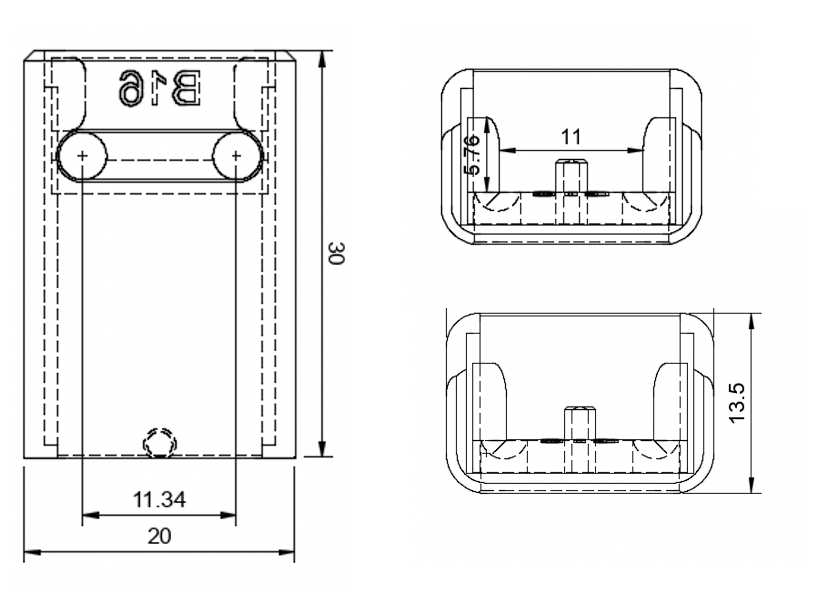

PowerShell Dimensions (mm)

Current Design

Dimensions in  mm

Dimensions in mm

Dimensions in mm.

Compare to dimensions of the typical urethane boot in wide spread use:

Length 38.1 mm

Width  19.7  mm

Height 11.0  mm

The PowerShell is slightly smaller with the exception of the "Height", with the PowerShell being about 1 mm greater.

This is a future offering using a 5.5 mm x 2.1 mm barrel connector

This is the current offering of the PowerShell.

Insert Dimensions

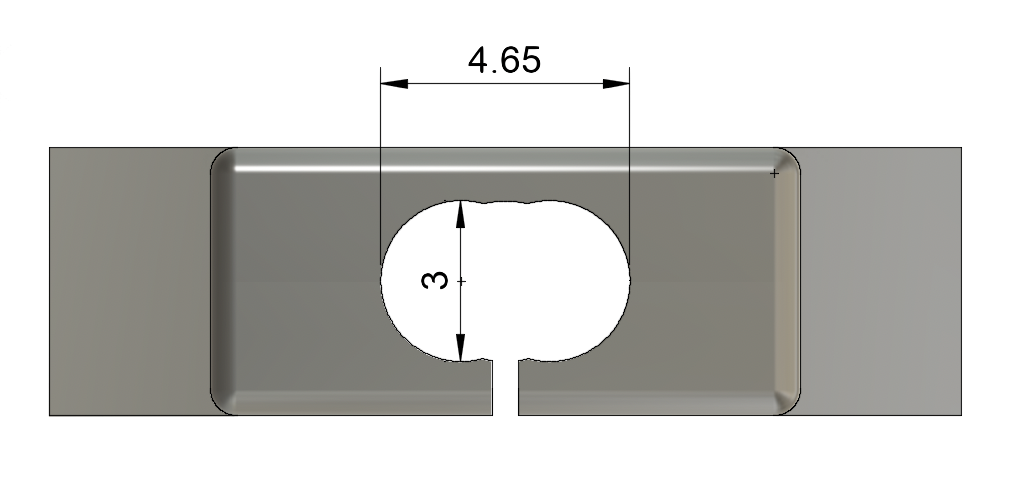

A3 Insert

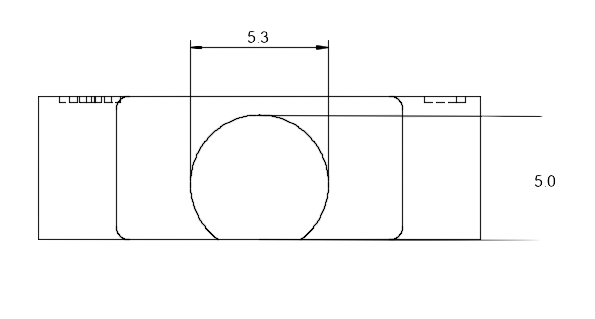

LA Insert

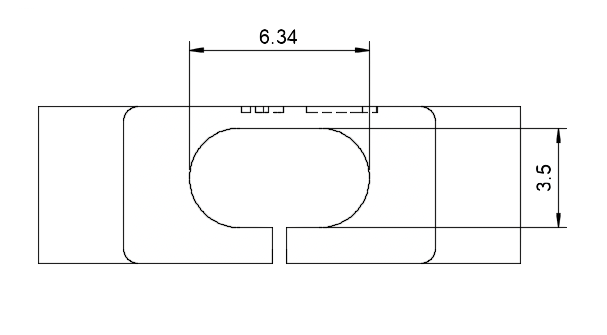

L1 Insert

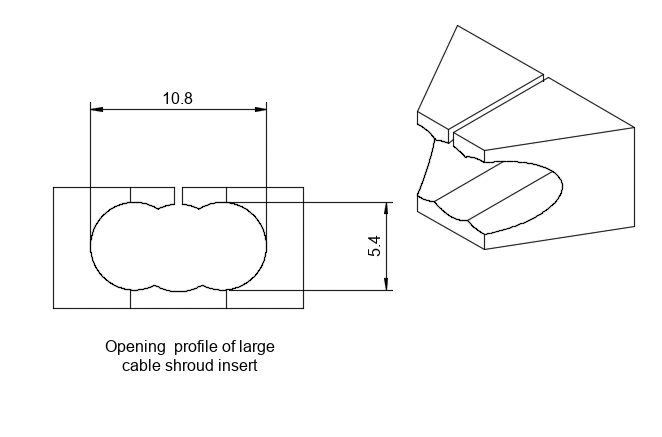

Use the insert dimensions to best match your cable.  There is some minimal "stretch" since these are urathene, however this is minimal.   Larger cables from AWG14 -AWG10 do not use an insert and are secured with a tie-wrap through the body of the shell as the only option.
